Product

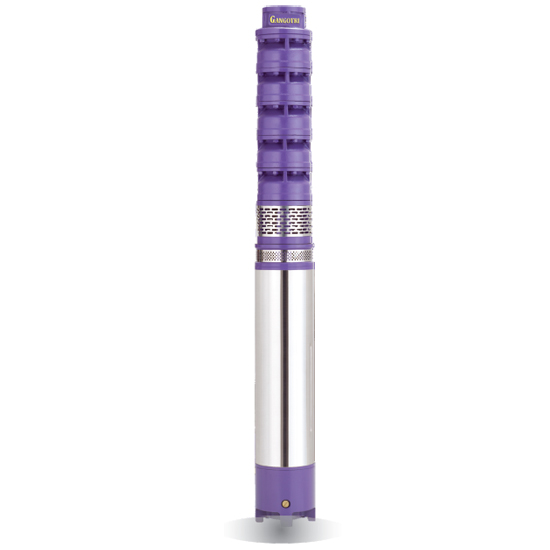

V6/V7 JANTA MODEL

(V6/V7 JANTA PUMP)

Application

  • For Agriculture Use
  • For Garden & Nursery Use
  • For Farm Irrigations Use
  • For Industries Use
  • For Hotel & Restaurants Use
  • For High-rise Building Use

Features

  • Easy to Install
  • Noiseless & Vibration free Pumpset
  • Low Power Consumption
  • High Operating Efficiency
  • Most of Running Pumpset are approved by BIS & BEE.
  • Easy to Rewind & Easily Repairable
  • Designed for wide voltage range

Technical Details

H.P. Range : 5 HP To 25 HP Three Phase
Maximum Head : Up to 100 Metre
Discharge at Duty Point : 1000 TO 1800 LPM
Maximum Head Per Stage : 15 Metre
Volt Range in % : -20 & +10%
Operating Voltage Range : 250 to 440 Volt Three Phase
Maximum Running / Hour : 15 Hours
Maximum Temp. of Water : 33 Degree Centigrade
Rated Volts / Frequency : 415 Volt / 50 Hz Three Phase
Bowl : C.I.
Speed : 2800 RPM
Impeller : S.S.
Motor Body : Special Stainless Steel
Rotor : EC Grade Copper
Outer Diameter : Motor - 142 mm, Pump - 165 mm
Suitable For : 175 mm & Above Dia. Borewell
