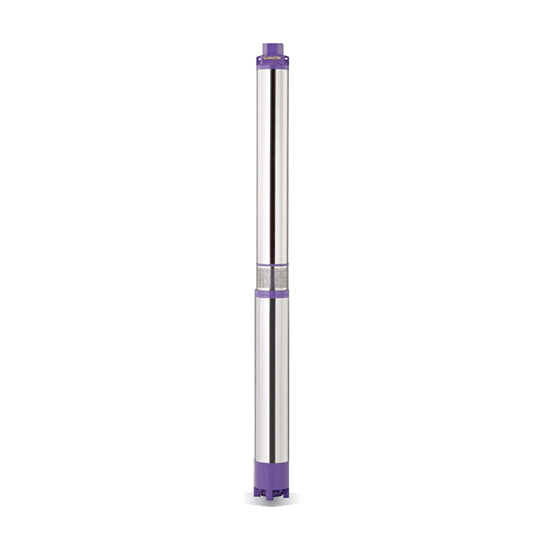

Gangotri Submersible Pump is a leading manufacturer and exporters of Submersible pump sets in india located at Rajkot (Gujarat State).
H.P. Range: 0.5 HP to 5.0 HP
Maximum Head: Up to 275 meters
Discharge at Duty Point: 35 to 260 LPM
Maximum Head per Stage: 6.0 meters
Voltage Variation Tolerance: –20% to +10%
Operating Voltage Range: 170–240 V (Single Phase) 250–440 V (Three Phase)
Maximum Running Hours: 14 hours
Maximum Water Temperature: 33°C
Rated Voltage / Frequency: 240 V / 50 Hz (Single Phase) 415 V / 50 Hz (Three Phase)
Bowl: Noryl
Speed: 2800 RPM
Impeller: Noryl
Motor Body: Special Stainless Steel
Rotor: EC Grade Copper
Outer Diameter: MotoR - 96 mm Pump: 86 mm
Suitable For : Borewell diameter : 100 mm & above
