Product

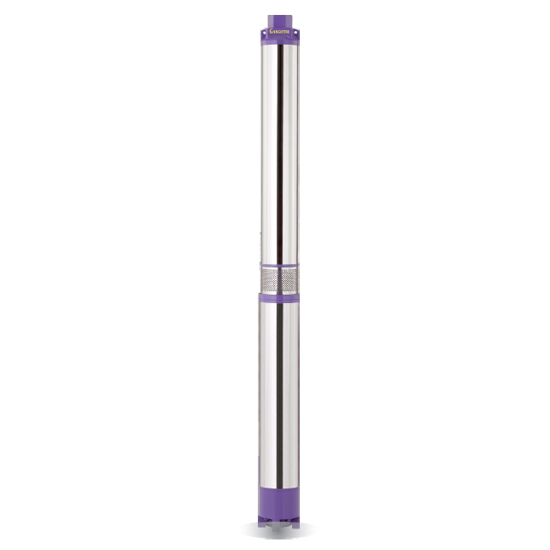

V5 NORYL MODEL

(V5 SUBMERSIBLE PUMP)

Application

  • For House Use
  • For Agriculture Use
  • For Garden & Nursery Use
  • For Farm Irrigations Use
  • For Industries Use
  • For Hotel & Restaurants Use

Features

  • Easy to Install
  • Noiseless & Vibration free Pumpset
  • Low Power Consumption
  • High Operating Efficiency
  • Most of Running Pumpset are approved by BIS & BEE.
  • Easy to Rewind & Easily Repairable
  • Designed for wide voltage range
  • Technical Details & Material Constructions

Technical Details

H.P. Range : 3 HP To 10 HP
Maximum Head : Up to 400 Metre
Discharge at Duty Point : 50 TO 200 LPM
Maximum Head Per Stage : 8.5 Metre
Voltage Range in % : -20 & +10 %
Operating Voltage Range : 250 to 440 Volt Three Phase
Maximum Running Hour : 14 Hours
Maximum Temp. of Water : 33 Degree Centi grade
Rated Volts / Frequency : 415 Volt / 50 Hz Three PhaseBowl : Noryl
Speed : 2800 RPM
Impeller : Noryl
Motor Body : Special Stainless Steel
Rotor : EC Grade Copper
Outer Diameter : Motor - 121 mm, Pump - 101 mm
Suitable For : 125 mm & Above Dia. Borewell
