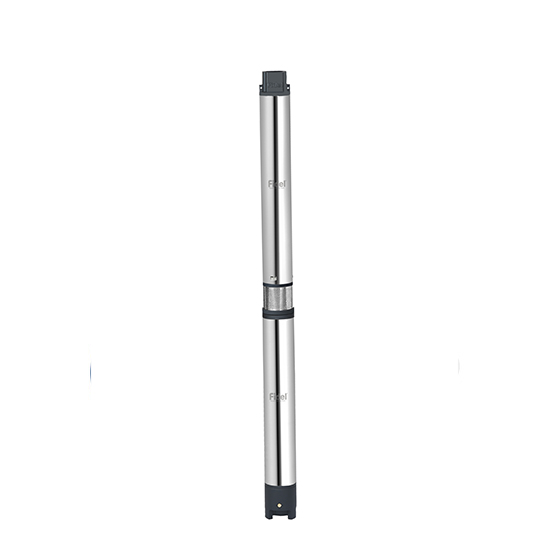

Product

H.P. Range : 0.5 HP To 1.5 H.P. Single Phase

Maximum Head : Up to 105 Metre

Discharge at Duty Point : 30 to 60 LPM

Maximum Head Per Stage : 4.0 Metre

Voltage Range in % : -20 & +10 %

Operating Voltage Range : 170 to 240 Volt

Maximum Running Hour : 14 Hours

Maximum Temp. of Water : 33 Degree Centigrade

Rated Volts / Frequency : 240 Volt / 50 Hz

Bowl : Noryl

Speed : 2800 RPM

Impeller : Noryl

Motor Body : Special Stainless Steel

Rotor : EC Grade Copper

Outer Diameter : Motor – 74 mm, Pump – 73 mm

Suitable For : 80 mm & Above Dia. Borewell
